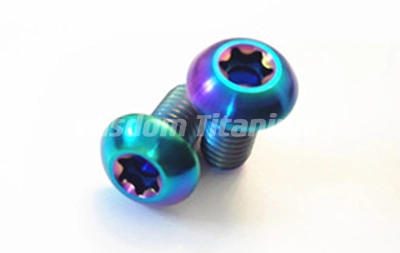

When it comes to high-performance cycling components, titanium disc rotor bolts have become increasingly popular among enthusiasts and professionals alike. These lightweight yet durable fasteners play a crucial role in securing brake rotors to wheel hubs, ensuring optimal braking performance and safety. But one question that often arises is: what size are titanium disc rotor bolts? Let's delve into the specifics and uncover the standard dimensions of these essential components.
Thread Size: M5
The thread size of titanium disc rotor bolts is a critical aspect that determines their compatibility with various brake systems. For most modern bicycles, the standard thread size for these bolts is M5. This metric designation indicates that the bolt has a nominal diameter of 5 millimeters.
The M5 thread size offers several advantages:
- Optimal strength-to-weight ratio
- Compatibility with a wide range of brake rotors and hubs
- Sufficient thread engagement for secure fastening
- Ease of installation and removal
It's worth noting that while M5 is the most common thread size, some specialized or older bike models may use different sizes. Always consult your bicycle's manual or a professional mechanic to ensure you're using the correct size for your specific setup.
Length Options: 10mm, 12mm, 15mm
Titanium disc rotor bolts typically come in three standard length options: 10mm, 12mm, and 15mm. The choice of length depends on several factors, including the thickness of your brake rotor, the design of your hub, and any spacers or adapters you might be using.
Let's break down each length option:
10mm Bolts
These are the shortest option and are commonly used with:
- Thin brake rotors (1.8mm - 2.0mm)
- Hubs with shallow mounting surfaces
- Setups without additional spacers
12mm Bolts
The 12mm length is versatile and suitable for:
- Standard thickness rotors (2.0mm - 2.3mm)
- Most common hub designs
- Setups with thin spacers or washers
15mm Bolts
The longest option, 15mm bolts, are ideal for:
- Thick brake rotors (2.3mm+)
- Hubs with deep mounting surfaces
- Setups using substantial spacers or adapters
Choosing the correct length is crucial for proper installation and optimal performance. A bolt that's too short may not provide adequate thread engagement, while one that's too long could interfere with other components or cause alignment issues.
Head Type: T25 Torx
The head type of titanium disc rotor bolts is another important consideration. The most common and recommended head type for these bolts is the T25 Torx. This design offers several advantages over traditional hex or Phillips head bolts:
- Improved torque transfer
- Reduced risk of stripping
- Better resistance to contamination
- Longer tool life
The T25 Torx head features a six-pointed star-shaped recess that provides excellent grip and torque transmission. This design allows for more efficient tightening and loosening of the bolts, even in challenging conditions or after extended use.
When working with T25 Torx head bolts, it's essential to use the correct tool to avoid damaging the bolt head or compromising the installation. A T25 Torx driver or bit is specifically designed for this purpose and should be included in any cyclist's toolkit.
Torque Specifications
While we're discussing the head type, it's worth mentioning the importance of proper torque when installing titanium disc rotor bolts. Always refer to your bike manufacturer's recommendations, but a general guideline for M5 titanium disc rotor bolts is:
- Minimum torque: 4 Nm (35 in-lbs)
- Maximum torque: 6 Nm (53 in-lbs)
Using a torque wrench ensures that you achieve the correct tightening force, preventing both under-tightening (which can lead to loose bolts) and over-tightening (which can damage the threads or the rotor).
The Benefits of Titanium
Now that we've covered the size specifications of titanium disc rotor bolts, let's briefly discuss why titanium is an excellent choice for this application:
- Lightweight: Titanium bolts can be up to 45% lighter than their steel counterparts, contributing to overall weight savings on your bike.
- Strength: Despite their light weight, titanium bolts offer exceptional strength, ensuring secure fastening of your brake rotors.
- Corrosion resistance: Titanium naturally resists corrosion, making these bolts ideal for use in various weather conditions and environments.
- Durability: The longevity of titanium bolts often surpasses that of steel or aluminum alternatives, potentially reducing long-term maintenance costs.
- Aesthetic appeal: The unique appearance of titanium can add a touch of sophistication to your bike's overall look.
Installation Tips
When installing titanium disc rotor bolts, keep these tips in mind:
- Clean the mounting surfaces thoroughly before installation.
- Apply a small amount of anti-seize compound to the bolt threads to prevent galling.
- Hand-tighten the bolts first to ensure proper alignment.
- Use a torque wrench to achieve the correct final tightening force.
- Follow a star pattern when tightening to ensure even pressure distribution.
- Double-check the torque after a short ride, as some settling may occur.
Maintenance Considerations
While titanium disc rotor bolts require minimal maintenance, it's still important to include them in your regular bike check-ups:
- Periodically inspect the bolts for any signs of wear or damage.
- Check the torque settings during routine maintenance to ensure they remain properly tightened.
- If you notice any unusual noises or feel any play in your brake rotors, inspect the bolts immediately.
- When replacing brake rotors or performing major maintenance, consider replacing the bolts as well to ensure optimal performance.
Compatibility Considerations
While titanium disc rotor bolts offer numerous advantages, it's essential to ensure they're compatible with your specific bike setup:
- Check your bike manufacturer's recommendations regarding bolt materials and specifications.
- Verify that the use of titanium bolts doesn't void any warranties on your bike or components.
- Consider any potential galvanic corrosion issues if your hub or rotor is made from a dissimilar metal.
- If you're unsure about compatibility, consult with a professional bike mechanic or the component manufacturer.
Environmental Impact
For environmentally conscious cyclists, it's worth considering the ecological aspects of titanium disc rotor bolts:
- Titanium is a highly recyclable material, reducing waste at the end of the product's life cycle.
- The durability of titanium bolts means they need to be replaced less frequently, potentially reducing overall resource consumption.
- The lightweight nature of titanium can contribute to marginal gains in bike efficiency, potentially reducing energy expenditure over time.
Cost Considerations
It's important to note that titanium disc rotor bolts typically come with a higher upfront cost compared to steel or aluminum alternatives. However, when evaluating the cost, consider:
- The potential long-term savings due to increased durability and reduced need for replacement
- The value of weight savings, especially for competitive cyclists or those who frequently tackle challenging terrain
- The peace of mind that comes with using high-quality, corrosion-resistant components
Contact Wisdom Titanium
Understanding the size specifications of titanium disc rotor bolts is crucial for ensuring proper installation and optimal performance of your bike's braking system. With a standard M5 thread size, length options of 10mm, 12mm, or 15mm, and a T25 Torx head type, these bolts offer a balance of strength, weight savings, and ease of use.
By choosing the correct size and following proper installation procedures, you can enjoy the benefits of titanium disc rotor bolts, including reduced weight, increased durability, and improved corrosion resistance. Whether you're a competitive cyclist looking for every advantage or a recreational rider seeking long-lasting, high-quality components, titanium disc rotor bolts can be an excellent upgrade for your bike.
Remember, while the information provided here covers standard specifications, always consult your bike's manual or a professional mechanic to ensure you're using the correct components for your specific setup. With the right knowledge and tools, you can optimize your bike's performance and enjoy safer, more confident rides.
Are you ready to upgrade your bike with high-performance titanium disc rotor bolts? Contact Wisdom Titanium at sales@wisdomtitanium.com to learn more about our premium titanium components and how they can enhance your cycling experience.
