Titanium torx bolts have become increasingly popular in various industries due to their exceptional strength-to-weight ratio and corrosion resistance. However, the hardness of these bolts can vary significantly depending on several factors. Understanding these factors is crucial for engineers, manufacturers, and end-users to ensure they select the right titanium torx bolts for their specific applications. In this comprehensive guide, we'll explore the key elements that influence the hardness range of titanium torx bolts.
Alloy Composition
The alloy composition of titanium torx bolts plays a pivotal role in determining their hardness. Different titanium alloys exhibit varying levels of hardness due to their unique chemical compositions. Here are some of the most common titanium alloys used in bolt manufacturing and their typical hardness ranges:
- Grade 2 (Commercially Pure Titanium): 145-220 HV
- Grade 5 (Ti-6Al-4V): 300-400 HV
- Grade 23 (Ti-6Al-4V ELI): 290-380 HV
- Beta C (Ti-3Al-8V-6Cr-4Mo-4Zr): 300-450 HV
The addition of alloying elements such as aluminum, vanadium, and molybdenum can significantly impact the hardness of titanium bolts. For instance, Grade 5 titanium, which contains 6% aluminum and 4% vanadium, exhibits higher hardness compared to commercially pure titanium (Grade 2).
Manufacturers often experiment with novel alloy compositions to achieve specific hardness ranges. For example, some proprietary alloys may incorporate elements like zirconium or niobium to fine-tune the hardness and other mechanical properties of titanium torx bolts.
It's worth noting that while higher hardness values generally correlate with increased strength, they may also lead to reduced ductility. Therefore, selecting the appropriate alloy composition requires careful consideration of the intended application and the required balance between hardness, strength, and ductility.
Processing Technology
The manufacturing process used to produce titanium torx bolts significantly influences their final hardness. Various processing technologies can alter the microstructure of the titanium alloy, thereby affecting its mechanical properties, including hardness. Let's explore some of the key processing techniques and their impact on bolt hardness:
1. Cold Working
Cold working involves deforming the titanium alloy at temperatures below its recrystallization point. This process can increase the hardness of titanium torx bolts by introducing dislocations and other defects into the crystal structure. The extent of hardness increase depends on the degree of cold working applied. However, excessive cold working can lead to brittleness, so manufacturers must strike a balance between hardness and ductility.
2. Hot Working
Hot working is performed at temperatures above the material's recrystallization point. While it generally results in lower hardness compared to cold working, it allows for greater formability and can produce a more uniform microstructure. Hot working can be combined with subsequent heat treatments to achieve the desired hardness range.
3. Machining
The machining process used to create the torx head and threading can affect the surface hardness of the bolt. High-speed machining techniques may induce work hardening on the bolt's surface, potentially increasing its hardness. Conversely, improper machining practices can lead to surface defects that compromise the bolt's overall hardness and performance.
4. Surface Treatments
Various surface treatments can be applied to titanium torx bolts to enhance their hardness and other properties. Some common treatments include:
- Nitriding: This process involves diffusing nitrogen into the surface of the bolt, creating a hard, wear-resistant layer.
- Oxygen diffusion hardening: Similar to nitriding, this technique uses oxygen to create a hardened surface layer.
- Shot peening: This mechanical process induces compressive stresses on the bolt's surface, potentially increasing its hardness and fatigue resistance.
The choice of processing technology depends on the specific requirements of the application and the desired hardness range. Manufacturers often employ a combination of these techniques to achieve optimal results for their titanium torx bolts.
Heat Treatment Status
Heat treatment is a crucial factor in determining the final hardness of titanium torx bolts. The heat treatment process can significantly alter the microstructure of the titanium alloy, leading to changes in mechanical properties, including hardness. Let's explore the various heat treatment methods and their effects on bolt hardness:
1. Solution Treatment and Aging (STA)
This two-step process is commonly used for alpha-beta titanium alloys like Grade 5 (Ti-6Al-4V):
- Solution Treatment: The alloy is heated to a high temperature (typically around 925°C for Ti-6Al-4V) and then rapidly cooled. This process creates a supersaturated solid solution.
- Aging: The material is then heated to a lower temperature (usually between 480°C and 595°C) for a specific duration. This allows controlled precipitation of fine particles, which increases the alloy's strength and hardness.
The specific temperatures and durations used in STA can be adjusted to achieve different hardness ranges. For example, higher aging temperatures generally result in lower hardness but improved ductility, while lower aging temperatures can lead to higher hardness at the expense of some ductility.
2. Annealing
Annealing involves heating the titanium alloy to a high temperature and then cooling it slowly. This process can reduce internal stresses, improve ductility, and decrease hardness. Annealing is often used when lower hardness and higher ductility are desired for specific applications of titanium torx bolts.
3. Stress Relieving
This heat treatment is performed at lower temperatures than annealing and is used to reduce residual stresses without significantly altering the alloy's microstructure. While stress relieving primarily affects the bolt's dimensional stability and resistance to stress corrosion cracking, it can also have a minor impact on hardness.
4. Beta Annealing
For beta and near-beta titanium alloys, beta annealing involves heating the material above its beta transus temperature and then cooling it at a controlled rate. This process can result in a unique microstructure that offers a combination of high strength and good ductility, with hardness values that can be tailored based on the cooling rate and subsequent aging treatments.
5. Cryogenic Treatment
Although less common, some manufacturers experiment with cryogenic treatments for titanium alloys. This involves cooling the material to extremely low temperatures (often below -150°C) and then slowly warming it back to room temperature. While the effects on titanium are less pronounced than on steels, cryogenic treatment can potentially enhance wear resistance and stability in certain titanium alloys.
The choice of heat treatment method and parameters depends on the specific titanium alloy and the desired properties for the final application. Manufacturers must carefully control the heat treatment process to achieve consistent hardness ranges across batches of titanium torx bolts.
It's important to note that the interaction between alloy composition, processing technology, and heat treatment is complex. Often, manufacturers will use a combination of these factors to achieve the optimal hardness range for a given application. For instance, a bolt might be made from a specific titanium alloy, cold worked to a certain degree, and then subjected to a carefully controlled heat treatment process to fine-tune its hardness and other mechanical properties.
Furthermore, the hardness of titanium torx bolts can vary across different parts of the bolt. The head, thread, and core of the bolt may exhibit slightly different hardness values due to variations in the manufacturing and heat treatment processes. This can be intentional, as different parts of the bolt may require different mechanical properties for optimal performance.
In addition to these primary factors, several other elements can influence the hardness range of titanium torx bolts:
- Grain size and orientation: Finer grain structures generally result in higher hardness.
- Impurities: The presence of impurities in the titanium alloy can affect its hardness and other properties.
- Environmental factors: Exposure to extreme temperatures or corrosive environments during service can alter the hardness of titanium bolts over time.
- Quality control: Variations in manufacturing processes and quality control measures can lead to differences in hardness between batches or individual bolts.
Understanding these factors is crucial for both manufacturers and end-users of titanium torx bolts. Manufacturers must carefully control each aspect of the production process to ensure consistent hardness and quality across their product lines. End-users, on the other hand, should consider these factors when selecting bolts for specific applications, ensuring that the chosen bolts have the appropriate hardness range to meet their performance requirements.
Titanium Torx Bolts Supplier

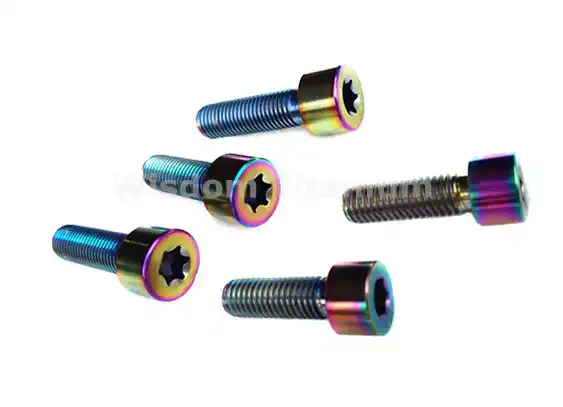

Wisdom Titanium offers high-quality titanium Torx bolts, which are made from Titanium Grade 5. These bolts feature a thread size range of M4 to M30, with head types specifically designed in Torx. They are available in lengths from 6mm to 150mm and diameters from 2mm to 12mm. These bolts have a strength above 1000 MPa and excellent corrosion resistance. They come in natural or anodized finishes and can operate within a temperature range of -250°C to 400°C. For more information or inquiries, please contact us at sales@wisdomtitanium.com.
