What is the thread size of titanium lug nuts? This seemingly simple question is crucial for anyone considering upgrading their vehicle's lug nuts or replacing existing ones. The thread size of titanium lug nuts plays a vital role in ensuring proper installation and, most importantly, the safety of your vehicle.
Understanding the correct thread size is not just a matter of fitting the lug nut onto the wheel stud. It's about ensuring a secure connection between your wheel and the vehicle's hub. The wrong thread size can lead to improper installation, potentially causing wheel loosening or even detachment while driving. This makes the thread size of titanium lug nuts a critical factor in maintaining your vehicle's safety and performance.
Thread Size Standards For Titanium Lug Nuts
When it comes to titanium lug nuts, there are several standard thread sizes commonly used in the automotive industry. These standards typically follow a format that includes the diameter of the thread and the pitch (distance between threads). For example, two of the most common thread sizes for lug nuts are M12x1.5 and M14x1.5.
In these designations, 'M' stands for metric, the first number (12 or 14) represents the diameter of the thread in millimeters, and the number after the 'x' (1.5) indicates the pitch in millimeters. So, an M12x1.5 lug nut has a thread diameter of 12mm with threads spaced 1.5mm apart.
While these are common standards, it's important to note that some vehicle models may use special specifications. For instance, some high-performance or luxury vehicles might use larger thread sizes like M14x1.25 or even M16x1.5. The reasons for these variations can include factors such as increased load-bearing capacity, improved torque distribution, or compatibility with specific wheel designs.
Several factors influence the thread size of lug nuts used on a vehicle. These include:
1. Vehicle brand and model: Different manufacturers may have preferences for certain thread sizes based on their engineering designs.
2. Vehicle type: Larger, heavier vehicles like trucks or SUVs may require larger thread sizes to support the increased weight and stress.
3. Wheel type: Aftermarket wheels may sometimes require different lug nut specifications compared to OEM wheels.
4. Performance requirements: High-performance vehicles may use specialized thread sizes to withstand increased forces during acceleration, braking, and cornering.
Why is The Thread Size Of Titanium Lug Nuts Important?
The importance of correct thread size for titanium lug nuts cannot be overstated. It directly impacts three crucial aspects of wheel installation and vehicle safety:
Firstly, proper matching between the lug nut thread size and the wheel stud is essential. If the thread size doesn't match exactly, it can lead to several problems. A slightly smaller thread size might seem to fit but won't engage properly with the stud threads, leading to a loose installation. Conversely, a larger thread size won't fit at all and could damage the stud threads if forced.
Secondly, thread size directly affects the tightening torque of the lug nut. Each thread size has a specific torque specification that ensures optimal clamping force between the wheel and the hub. Using the wrong size can result in either insufficient torque (risking wheel loosening) or excessive torque (potentially damaging the stud or wheel).
Lastly, and most critically, the thread size of titanium lug nuts has a direct relationship with driving safety. Mismatched thread sizes can lead to gradual loosening of the wheel during driving. In extreme cases, this could result in wheel detachment, posing a severe risk to the driver, passengers, and other road users. Therefore, ensuring the correct thread size is not just about proper fitment – it's a crucial safety measure.
How To Choose The Right Titanium Lug Nuts?
Selecting the correct titanium lug nuts with the right thread size is crucial. Here are some reliable methods to ensure you choose the right ones:
The most reliable way to determine the correct thread size for your vehicle is to consult the owner's manual. This document, provided by the manufacturer, contains precise specifications for all parts of your vehicle, including lug nuts. It will list the exact thread size required, eliminating any guesswork.
If you don't have access to the manual or if you're unsure about interpreting the information, it's advisable to consult professionals. Your vehicle's dealership (often referred to as a 4S store) or a reputable auto parts store should be able to provide accurate information about the correct lug nut thread size for your specific make and model.
For those who prefer a hands-on approach, it's possible to measure the thread size yourself. This involves measuring the diameter of the stud and the distance between threads (pitch). However, this method requires precision and some technical knowledge. If you choose this route, use a quality caliper for accurate measurements. Remember, even a slight error in measurement can lead to selecting the wrong size, so double-check your results.
When measuring, the major diameter of the thread (the widest part) gives you the first number in the thread size designation. To measure the pitch, count the number of threads within a 1-inch or 25.4mm length and divide 25.4 by this number. For example, if you count 17 threads in 25.4mm, the pitch would be 25.4/17 = 1.5mm.
While this method can be useful, it's important to note that it's not foolproof. Factors like wear on the studs or imprecise measuring tools can lead to errors. Therefore, while measuring can be a good starting point, it's always best to verify your findings with the vehicle manual or a professional.

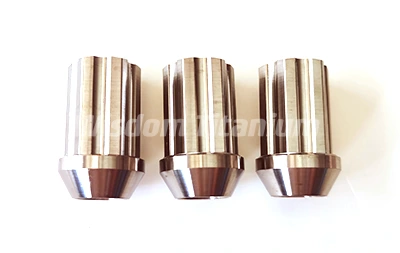

Titanium Lug Nuts For Sale
For those in the market for titanium lug nuts, it's crucial to choose a reputable supplier that offers products with the correct specifications for your vehicle. One such option is the Wisdom Titanium company, which provides titanium lug nuts in common thread sizes including M12 x 1.5, M12 x 1.25, M14 x 1.5, and M14 x 1.25.you can reach out to their sales team at sales@wisdomtitanium.com.
These options cover a wide range of vehicle makes and models, but it's still essential to verify the correct size for your specific vehicle before making a purchase. Remember, while titanium lug nuts offer benefits like light weight and corrosion resistance, these advantages only apply if the nuts are the correct size and properly installed.
When considering titanium lug nuts, also take into account factors beyond just the thread size. These may include the seat type (conical or flat), the overall length of the lug nut, and any specific requirements for your vehicle or wheels. Always prioritize safety and proper fitment over aesthetics or minor weight savings.
In conclusion, understanding and choosing the correct thread size for titanium lug nuts is crucial for vehicle safety and performance. Whether you're upgrading to titanium for weight savings, corrosion resistance, or aesthetic reasons, always ensure you're selecting the right size for your specific vehicle. When in doubt, consult with professionals or the vehicle manufacturer to guarantee a safe and proper fit.
References
1. Society of Automotive Engineers. (2020). Fastener Standards Manual. SAE International.
2. Machinery's Handbook. (2016). 30th Edition. Industrial Press.
3. International Organization for Standardization. (2013). ISO 965-1:2013 ISO general purpose metric screw threads — Tolerances — Part 1: Principles and basic data. ISO.
4. Carroll, J. A. (2015). Fundamentals of Car Body Design. Butterworth-Heinemann.
5. Reimpell, J., Stoll, H., & Betzler, J. W. (2001). The Automotive Chassis: Engineering Principles. Butterworth-Heinemann.
6. Happian-Smith, J. (Ed.). (2001). An Introduction to Modern Vehicle Design. Butterworth-Heinemann.
