Titanium banjo bleeder bolts are crucial components in high-performance braking systems, particularly in automotive and motorsport applications. These specialized fasteners play a vital role in maintaining the integrity and efficiency of brake systems. To ensure their reliability and durability, it's essential to understand the standards and methods used for inspecting their hardness. In this comprehensive guide, we'll explore the hardness testing methods, standard hardness ranges, and the impact of hardness on the performance of titanium banjo bleeder bolts.
Hardness Testing Methods for Titanium Banjo Bleeder Bolts
The hardness of titanium banjo bleeder bolts is a critical factor in determining their strength, wear resistance, and overall performance. Several testing methods are employed to accurately measure and evaluate the hardness of these components. The most common hardness testing methods used include:
1. Rockwell Hardness Test: This is one of the most widely used methods for testing the hardness of titanium alloys. The Rockwell C scale (HRC) is typically used for titanium banjo /bleeder bolts due to their high hardness values. This test involves applying a specific load to the material's surface using a diamond cone indenter and measuring the depth of indentation.
2. Vickers Hardness Test: This method is particularly suitable for testing thin sections or small parts, making it ideal for titanium banjo bleeder bolts. The test uses a diamond pyramid indenter to create a small indentation on the material's surface. The hardness is then calculated based on the size of the indentation.
3. Brinell Hardness Test: Although less commonly used for titanium alloys, the Brinell test can be employed for larger titanium bleeder bolts. This method uses a hardened steel ball to create an indentation on the material's surface, and the hardness is determined by measuring the diameter of the resulting impression.
4. Ultrasonic Hardness Testing: This non-destructive method uses sound waves to measure the hardness of titanium bleeder bolts. It's particularly useful for testing components without causing any damage to the surface, making it ideal for quality control during production.
When selecting a hardness testing method for titanium banjo bleeder bolts, factors such as the bolt size, shape, and specific application requirements must be considered. In many cases, a combination of these methods may be used to ensure comprehensive and accurate hardness evaluation.
Standard Hardness Range for Titanium Banjo Bleeder Bolts
The hardness of titanium banjo bleeder bolts can vary depending on the specific grade of titanium alloy used and the manufacturing process. However, there are general hardness ranges that these components typically fall within to ensure optimal performance and durability.
For Grade 5 titanium (Ti-6Al-4V), which is commonly used in high-performance automotive applications, including banjo bleeder bolts, the standard hardness range is typically between 33-37 HRC (Rockwell C scale) or 321-363 HV (Vickers Hardness). This range provides an excellent balance of strength, toughness, and corrosion resistance.
It's important to note that the exact hardness specifications may vary depending on the manufacturer and the specific requirements of the application. Some high-performance racing applications may require titanium banjo bleeder bolts with slightly higher hardness values to withstand extreme conditions.
The hardness of titanium banjo bleeder bolts is closely related to their tensile strength. As a general rule, higher hardness values correspond to higher tensile strength. For Grade 5 titanium, the typical tensile strength range is between 895-930 MPa (130-135 ksi).
To ensure consistent quality and performance, manufacturers of titanium bleeder bolts often implement strict quality control measures, including regular hardness testing throughout the production process. This helps maintain the hardness within the specified range and ensures that each bolt meets the required standards for its intended application.
Impact of Hardness on Titanium Banjo Bleeder Bolt Performance
The hardness of titanium banjo bleeder bolts plays a crucial role in their overall performance and longevity. Understanding how hardness impacts various aspects of bolt performance is essential for both manufacturers and end-users. Here are some key ways in which hardness affects titanium bleeder bolts:
1. Strength and Durability: Harder titanium bleeder bolts generally exhibit higher strength and better resistance to deformation under load. This is particularly important in high-performance braking systems where the bolts are subjected to significant stress and pressure. The increased hardness helps maintain the bolt's integrity and prevents failure during critical operations.
2. Wear Resistance: Harder titanium banjo bleeder bolts demonstrate improved wear resistance, which is crucial for maintaining a tight seal in the braking system. This enhanced wear resistance helps prevent leaks and ensures consistent brake performance over time.
3. Fatigue Resistance: Its hardness is directly related to its fatigue resistance. Bolts with optimal hardness can better withstand repeated stress cycles, reducing the risk of fatigue failure in high-stress applications such as racing or high-performance driving.
4. Corrosion Resistance: While titanium itself is highly corrosion-resistant, the hardness of the banjo bleeder bolts can influence their resistance to certain types of corrosion, particularly in harsh environments. Properly hardened titanium bolts can better withstand exposure to brake fluids and other potentially corrosive substances.
5. Thread Integrity: The hardness of titanium banjo bleeder bolts affects the integrity and durability of their threads. Bolts with appropriate hardness maintain their thread profile under repeated tightening and loosening, ensuring a secure connection and preventing thread stripping or galling.
6. Weight Considerations: One of the primary advantages of using titanium banjo bleeder bolts is their lightweight nature. While increasing hardness can improve strength, it's essential to balance hardness with weight to maintain the overall weight reduction benefits of titanium components in high-performance applications.
7. Thermal Stability: The hardness of titanium bleeder bolts influences their ability to maintain structural integrity under high-temperature conditions. This is particularly important in braking systems where heat generation is significant. Properly hardened titanium bolts can better withstand thermal cycling without compromising their performance.
It's worth noting that while higher hardness values generally correlate with improved performance in many aspects, excessively high hardness can lead to brittleness and reduced impact resistance. Therefore, manufacturers must carefully balance hardness with other material properties to achieve optimal performance for specific applications.
China Titanium Banjo Bleeder Bolts
Understanding the standards for inspecting the hardness of titanium banjo bleeder bolts is crucial for ensuring the reliability and performance of high-end braking systems. By employing appropriate hardness testing methods, adhering to standard hardness ranges, and recognizing the impact of hardness on bolt performance, manufacturers and users can make informed decisions to optimize their braking system components.

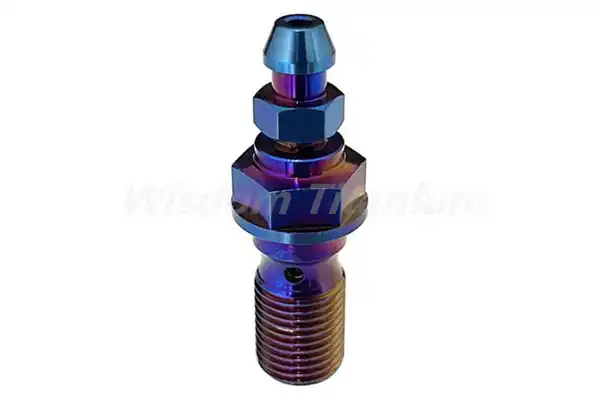

Looking for a high-performance titanium banjo/bleeder bolt for your Brembo Calipers? Look no further than Baoji Wisdom Titanium! Our bolts are crafted from Grade 5 titanium, ensuring they are lightweight yet incredibly strong and corrosion-resistant. Each bolt is precision CNC machined with rolled threads for durability and a perfect fit. With a thread size of M10*1, these bolts are designed to enhance your braking system's performance while reducing weight. Don't miss out on this essential upgrade for your vehicle. Contact us todayat sales@wisdomtitanium.com to place your order and experience the difference that Baoji Wisdom Titanium makes!
References:
- ASTM E18-20, "Standard Test Methods for Rockwell Hardness of Metallic Materials," ASTM International, 2020.
- ASTM E92-17, "Standard Test Methods for Vickers Hardness and Knoop Hardness of Metallic Materials," ASTM International, 2017.
- ASTM E10-18, "Standard Test Method for Brinell Hardness of Metallic Materials," ASTM International, 2018.
- Tian, Y., & Qiu, T. (2016). "Ultrasonic hardness measurement of titanium alloys." Materials Science and Engineering: A, 669, 54-61.
- ASM International. (2015). "Titanium: A Technical Guide, 2nd Edition." Materials Park, OH: ASM International.
- Boyer, R., Welsch, G., & Collings, E. W. (1994). "Materials Properties Handbook: Titanium Alloys." ASM International.
