Titanium washers play a crucial role in various industrial applications, providing strength, durability, and corrosion resistance in critical fastening systems. When selecting titanium washers for a project, engineers and designers must consider whether standard-sized washers will suffice or if oversize washers are necessary. This article examines the key differences between titanium oversize washers and regular-sized titanium washers to help inform decision-making.
Size and Design
The most obvious difference between oversize and regular titanium washers is their dimensions. Regular titanium washers typically have an outer diameter that is about twice the diameter of the bolt or screw they are used with. In contrast, oversize titanium washers have a significantly larger outer diameter in relation to the fastener size.
Oversize washers are designed to provide a larger surface area for load distribution. They often have a diameter that is 3-4 times that of the bolt, sometimes even larger for specialized applications. This increased size allows the washer to spread the clamping force over a wider area.
The thickness of the titanium oversize washer may also be greater than that of regular washers to accommodate the larger diameter and maintain proper strength. However, the inner diameter remains similar to regular washers to fit the same bolt sizes.
Regular titanium washers are suitable for most standard applications where the fastener's load is distributed over a relatively small area. Oversize washers are ideal for situations requiring load distribution over a larger surface, such as with softer materials or in high-stress environments.
Load Distribution
One of the primary advantages of oversize titanium washers is their superior load distribution capabilities. The larger surface area allows the clamping force from the bolt or nut to be spread over a wider region of the joined materials. This can be particularly beneficial in several scenarios:
- Soft or brittle materials: When fastening components made of softer metals, plastics, or composites, oversize washers help prevent localized stress concentrations that could lead to material deformation or failure.
- Uneven surfaces: Oversize washers can bridge small gaps or irregularities in mating surfaces, ensuring more uniform pressure distribution and improved sealing in some applications.
- Hole reinforcement: In cases where bolt holes may be oversized or elongated, oversize washers provide additional support and help maintain joint integrity.
- High-load applications: For joints subject to high tensile or shear loads, oversize washers distribute forces more evenly, reducing the risk of fastener pull-through or material failure.
Regular titanium washers, while effective for many applications, may not provide sufficient load distribution in these more demanding scenarios. Their smaller surface area can lead to higher localized stresses, potentially causing premature wear or failure in critical joints.
Performance
The performance differences between oversize and regular titanium washers stem primarily from their size and load distribution characteristics. Oversize washers often offer several performance advantages:
- Improved fatigue resistance: titanium oversize washers play a crucial role in improving the fatigue life of joints that experience cyclic loading. By effectively distributing the load and reducing stress concentrations around the bolt hole, these washers minimize the risk of failure over time, ensuring greater durability and reliability in various applications where repeated movements occur.
- Better sealing: In applications that demand a watertight or airtight seal, oversize washers are particularly beneficial. They create a larger sealing surface, which can significantly enhance leak resistance. This increased surface area helps to distribute pressure more evenly, ensuring a more effective barrier against moisture and air infiltration, thereby improving overall performance and reliability.
- Enhanced vibration resistance: The larger contact area of oversize washers plays a vital role in mitigating vibrations and preventing fastener loosening in dynamic environments. By distributing forces more evenly across the surface, they absorb shocks and reduce wear on components. This enhancement leads to increased stability and longevity of the fastened joints in demanding applications.
- Increased pull-through resistance: Oversize washers are designed to minimize the risk of pulling through the material being fastened, particularly in softer substrates or high-load applications. Their larger surface area helps distribute load more effectively, ensuring greater stability and preventing damage to the material over time.
- Improved load bearing in composite materials: When used with fiber-reinforced composites, oversize washers help distribute loads more evenly across the fiber matrix, reducing the risk of delamination or fiber breakage.
Regular titanium washers perform adequately in many standard applications but may fall short in these more demanding scenarios. However, they have the advantage of being more compact and lightweight, which can be crucial in applications where space and weight are at a premium.
It's important to note that while oversize washers offer these potential benefits, they are not always necessary or desirable. In some cases, the added weight, cost, or space requirements of oversize washers may outweigh their performance advantages. Engineers must carefully consider the specific requirements of each application when selecting between oversize and regular titanium washers.

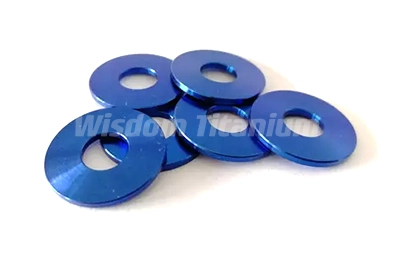

China Titanium Oversize Washer
Chinese titanium oversize washers are often produced using high-grade titanium alloys, such as Grade 2 or Grade 5 (Ti-6Al-4V), depending on the specific application requirements. These washers are typically manufactured using precision CNC machining or stamping processes to ensure dimensional accuracy and consistent quality.
Conclusion
Wisdom Titanium Company is one such manufacturer specializing in custom-designed titanium washers, including oversize variants. They offer expertise in titanium fabrication and can work with clients to develop washers tailored to specific application requirements. For those seeking a reliable titanium oversize washer manufacturer, Wisdom Titanium Company welcomes inquiries at sales@wisdomtitanium.com.
References
1. ASM International. (2015). Titanium: A Technical Guide, 2nd Edition.
2. Bickford, J. H. (2007). Introduction to the Design and Behavior of Bolted Joints, Fourth Edition. CRC Press.
3. Campbell, F. C. (2011). Joining: Understanding the Basics. ASM International.
4. Machinery's Handbook, 31st Edition. (2020). Industrial Press.
