Raw material preparation
The manufacturing process of titanium wheel studs begins with the careful selection of high-quality titanium alloy materials. Typically, manufacturers use titanium alloy bars or plates, most commonly Ti-6Al-4V (Grade 5) or Ti-6Al-4V ELI (Extra Low Interstitial, Grade 23). These alloys are chosen for their exceptional strength-to-weight ratio, corrosion resistance, and durability. The quality of the raw material is crucial as it forms the foundation for the entire manufacturing process and directly impacts the performance and longevity of the final product.
Raw material preparation involves several steps to ensure the titanium alloy meets the required specifications. This includes chemical composition analysis, microstructure examination, and mechanical property testing. The material is also inspected for any surface defects or internal flaws using various non-destructive testing methods such as ultrasonic testing or X-ray inspection. Only materials that pass these rigorous quality checks are approved for use in the production of wheel studs.
Material cutting
Once the raw material has been approved, the next step is to cut it into appropriate sizes for further processing. This is typically done using precision cutting equipment such as CNC (Computer Numerical Control) machines, waterjet cutters, or laser cutting systems. The choice of cutting method depends on factors such as the thickness of the material, the required precision, and production volume.
The cutting process is critical as it determines the initial dimensions of the billet from which the wheel stud will be formed. Accuracy at this stage is essential to minimize material waste and ensure consistency in the subsequent manufacturing steps. The cut billets are typically cylindrical in shape, with dimensions slightly larger than the final wheel stud to allow for material removal during later machining processes.
After cutting, the billets are often deburred to remove any sharp edges or burrs that may have formed during the cutting process. This step is important for worker safety and to prevent any interference in subsequent manufacturing processes.
Upsetting
Upsetting is a crucial step in the formation of the wheel stud's basic shape. In this process, the titanium alloy billet is heated to a specific temperature, typically between 800°C and 950°C (1472°F to 1742°F), depending on the exact alloy composition and desired properties. The heating is usually done in an induction furnace, which allows for precise temperature control.
Once heated, the billet is placed into a die and subjected to high pressure using a forging press. This pressure causes the metal to "upset" or deform, filling the die cavity to form the basic shape of the wheel stud, including the rod, head, and under-head radius. The upsetting process is critical for achieving the desired mechanical properties of the stud, as it helps to refine the grain structure of the titanium alloy.
The temperature and pressure used during upsetting must be carefully controlled to ensure the integrity of the stud's shape and internal structure. Improper upsetting can lead to defects such as laps, folds, or internal voids, which could compromise the strength and durability of the finished wheel stud.
Heat treatment
After upsetting, the wheel studs undergo heat treatment to optimize their mechanical properties. This typically involves two main processes: solution treatment and aging.
Solution treatment involves heating the titanium alloy to a high temperature, usually around 900°C to 950°C (1652°F to 1742°F), and holding it at this temperature for a specific time. This process dissolves the alloying elements into the titanium matrix, creating a homogeneous structure. The material is then rapidly cooled or quenched, usually in water, to maintain this homogeneous structure at room temperature.
Following solution treatment, the wheel studs undergo aging, also known as precipitation hardening. This involves heating the material to a lower temperature, typically between 480°C and 550°C (896°F to 1022°F), and holding it for several hours. During aging, fine precipitates form within the titanium matrix, significantly increasing the strength and hardness of the alloy.
The heat treatment process is crucial for achieving the optimal balance of strength, ductility, and fatigue resistance in the wheel studs. The exact parameters of the heat treatment process are often proprietary and may vary depending on the specific requirements of the end application.
Machining
After heat treatment, the wheel studs undergo various machining operations to achieve their final shape and dimensions. This typically involves several steps:
1. Turning: The rod portion of the stud is turned on a lathe to achieve the correct diameter and length. This process may also involve creating any necessary tapers or shoulders on the stud.
2. Milling: The head of the stud is often milled to create a hexagonal or other polygonal shape. This allows for the stud to be gripped by a wrench during installation or removal.
3. Thread rolling: The threads on the stud are typically formed through a process called thread rolling. This involves pressing the stud between two dies with the thread profile engraved on them. As the stud rotates between these dies, the thread is formed by plastic deformation of the metal. Thread rolling is preferred over cutting threads as it produces stronger threads with better fatigue resistance.
4. Drilling: Some wheel stud designs may require holes to be drilled, such as for safety wire in racing applications.
All these machining processes require high-precision equipment and careful process control to ensure the dimensional accuracy and surface finish of the wheel studs meet the required specifications.
Cleaning
After machining, the wheel studs undergo a thorough cleaning process to remove any oils, coolants, or metal particles that may have accumulated during the manufacturing process. This cleaning is crucial for several reasons:
1. It ensures that the surface of the stud is free from contaminants that could interfere with subsequent surface treatments or the stud's performance in use.
2. It helps to prevent corrosion by removing any substances that could react with the titanium alloy.
3. It improves the aesthetic appearance of the finished product.
The cleaning process typically involves multiple steps, which may include degreasing, ultrasonic cleaning, and rinsing with deionized water. Some manufacturers may also use chemical etching to remove a thin layer from the surface of the stud, ensuring a perfectly clean surface.
Surface treatment
The final step in the manufacturing process is surface treatment. While titanium alloys naturally form a protective oxide layer that provides excellent corrosion resistance, additional surface treatments can further enhance the performance and appearance of the wheel studs.
One common surface treatment for titanium wheel studs is anodizing. This electrochemical process thickens and toughens the natural oxide layer on the titanium surface. Anodizing can improve corrosion resistance, reduce galling (a form of adhesive wear), and allow for color coding of the studs.
Another important surface treatment is the application of lubricants or anti-seize compounds. These are typically applied to the threads of the stud to prevent galling and ensure consistent torque during installation and removal. The choice of lubricant depends on the specific application and operating conditions of the wheel stud.
Some manufacturers may also apply coatings such as titanium nitride (TiN) or diamond-like carbon (DLC) to further enhance wear resistance and reduce friction.
Titanium wheel studs for sale

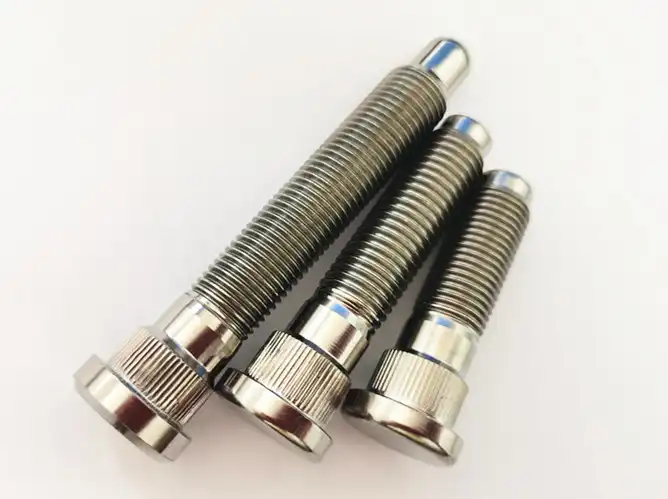

For those in the market for high-quality titanium wheel studs, Wisdom Titanium company offers a range of options to suit various vehicles and applications. Their product line includes titanium wheel studs with common thread sizes such as M12 x 1.5, M14 x 1.25, and M14 x 1.5, covering a wide spectrum of automotive needs from compact cars to larger vehicles.
When selecting titanium wheel studs, it's crucial to choose the correct thread size and length for your specific vehicle to ensure proper fitment and performance. If you're considering upgrading to titanium wheel studs or need assistance in selecting the right product, Wisdom Titanium invites potential customers to reach out to them at sales@wisdomtitanium.com. Their team can provide expert guidance on choosing the appropriate titanium wheel studs for your vehicle and application.
References
1. Lutjering, G., & Williams, J. C. Titanium (2nd ed.). Springer-Verlag Berlin Heidelberg.
2. Donachie, M. J. Titanium: A Technical Guide (2nd ed.). ASM International.
3. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
4. Leyens, C., & Peters, M. (Eds.). Titanium and Titanium Alloys: Fundamentals and Applications. John Wiley & Sons.
5. Joshi, V. A. Titanium Alloys: An Atlas of Structures and Fracture Features. CRC Press.
