Upgrading your bike's components can significantly enhance its performance and aesthetics. One popular upgrade is switching to titanium chainring bolts. These lightweight, durable fasteners not only reduce your bike's overall weight but also add a touch of sophistication to your drivetrain. However, before you make the switch, it's crucial to know how to measure chainring bolt size accurately. This guide will walk you through the process, ensuring you select the perfect fit for your bike.
Types of Chainring Bolts
Before diving into the measurement process, it's essential to understand the different types of chainring bolts available. Chainring bolts come in various materials, sizes, and designs, each suited for specific bike setups and riding styles.

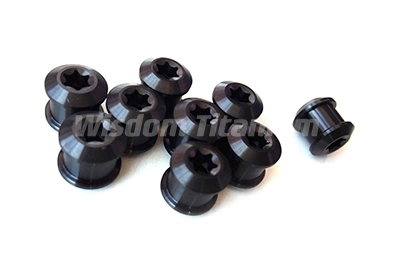

1. Titanium Chainring Bolts: Known for their exceptional strength-to-weight ratio, these bolts are a popular choice among weight-conscious cyclists. They offer excellent corrosion resistance and durability, making them ideal for high-performance bikes.
2. Steel Chainring Bolts: These are the most common type, offering durability and affordability. They're suitable for most riding conditions but are heavier than titanium alternatives.
3. Aluminum Chainring Bolts: Lighter than steel but not as strong as titanium, aluminum bolts are a budget-friendly option for weight reduction. However, they may not be suitable for intense riding conditions.
4. Single-Speed Chainring Bolts: Designed specifically for single-speed and track bikes, these bolts are typically shorter and may have a different thread pitch compared to multi-speed setups.
5. Double Chainring Bolts: These are longer than single-speed bolts and are used to secure two chainrings to the crankset.
Measuring Chainring Bolt Size: What You Need to Know
Accurately measuring chainring bolt size is crucial for ensuring a proper fit and optimal performance. Here's what you need to consider:
1. Bolt Length: This is the distance from the bottom of the bolt head to the end of the threaded portion. For titanium chainring bolts, common lengths include 6.5mm, 8.5mm, and 10mm.
2. Thread Diameter: Most modern chainring bolts have an M8 (8mm) thread diameter. However, some older or specialized bikes may use M5 or M6 bolts.
3. Thread Pitch: This refers to the distance between thread peaks. Common thread pitches for chainring bolts are 0.75mm and 1.0mm.
4. Bolt Head Style: Chainring bolts can have different head styles, such as Allen (hex) or Torx. Ensure your new bolts match your existing tools or be prepared to purchase new ones.
5. Nut Length: If your chainring bolt set includes nuts, measure their length as well. Common nut lengths for titanium chainring bolts are 4.5mm and 6mm.
Step-by-Step Guide to Measuring Chainring Bolt Size
Follow these steps to accurately measure your chainring bolt size:
1. Remove the Existing Bolts: Use the appropriate tool (usually an Allen key or Torx driver) to remove one of the existing chainring bolts. Be careful not to lose any spacers or washers.
2. Measure Bolt Length: Use a digital caliper for the most accurate measurement. Place the bolt on a flat surface and measure from the bottom of the head to the end of the threaded portion.
3. Determine Thread Diameter: Use a thread pitch gauge or compare the bolt to known M5, M6, or M8 bolts to determine the thread diameter.
4. Check Thread Pitch: Use a thread pitch gauge to determine the distance between thread peaks. If you don't have a gauge, consult your bike's manual or contact the manufacturer.
5. Measure Nut Length: If your bolt set includes nuts, measure their length using the digital caliper.
6. Note Bolt Head Style: Determine whether your existing bolts use an Allen or Torx head, and note the size.
7. Count the Number of Bolts: Different cranksets may require varying numbers of bolts. Count how many you need to replace.
8. Consider Spacers: If your current setup uses spacers, measure their thickness and note their position.
9. Check Compatibility: Ensure the titanium chainring bolts you're considering are compatible with your crankset and chainring combination. Some setups may require specific bolt designs.
10. Verify Measurements: Double-check all your measurements before making a purchase. It's always better to be certain than to order the wrong size.
When selecting titanium chainring bolts, pay attention to the manufacturer's specifications. Some brands, like Wisdom Titanium, offer high-performance bolts made from aviation-grade Ti6Al4V titanium alloy. These bolts often come with features like pre-drilled safety wire holes and various color options through PVD coating processes.
Remember that while titanium bolts offer significant weight savings and durability, they require proper installation to function optimally. Always follow the manufacturer's torque specifications and use a torque wrench to avoid over-tightening, which can damage the threads or the chainring.
Upgrading to titanium chainring bolts can be a rewarding modification for your bike, enhancing both performance and aesthetics. By accurately measuring your existing bolts and understanding your bike's specific requirements, you can ensure a perfect fit and enjoy the benefits of this high-performance component.
Ready to upgrade your bike with high-performance titanium chainring bolts? Contact Wisdom Titanium at sales@wisdomtitanium.com for expert advice and top-quality products that will take your cycling experience to the next level.
