Surface treatment
Ensuring the dimensional accuracy and surface finish of titanium wheel studs is crucial for their performance, durability, and overall safety. One of the key aspects of this process is surface treatment, which plays a vital role in enhancing the properties of the titanium alloy used in wheel studs. Hard anodizing and polishing are two primary surface treatment methods employed to achieve a smooth, scratch-free surface while maintaining the original color of the titanium alloy and improving its corrosion resistance.
Hard anodizing is an electrochemical process that creates a thick, hard oxide layer on the surface of the titanium wheel stud. This process involves immersing the titanium part in an electrolyte bath and passing an electric current through it. The resulting oxide layer is typically between 25 and 50 micrometers thick, providing excellent wear resistance and corrosion protection. The hard-anodized surface is also porous, which allows for better lubricant retention, further enhancing the stud's performance and longevity.
Polishing, on the other hand, is a mechanical process that smooths the surface of the titanium wheel stud. This process can be carried out using various methods, including abrasive polishing, electro-polishing, or a combination of both. The goal of polishing is to reduce surface roughness, remove any microscopic imperfections, and create a uniform, mirror-like finish. A well-polished surface not only enhances the aesthetic appeal of the wheel stud but also improves its corrosion resistance by eliminating potential sites for corrosion initiation.
The combination of hard anodizing and polishing provides titanium wheel studs with an optimal surface finish that is both functional and visually appealing. This surface treatment process ensures that the studs maintain their original titanium color while benefiting from improved corrosion resistance, wear resistance, and overall durability.
Dimensional accuracy
Maintaining high-precision dimensional control during the design and manufacturing process of titanium wheel studs is paramount to ensure a perfect installation experience and maximize safety. The industry standard for dimensional accuracy in high-quality wheel studs is typically within 0.02mm, which requires advanced manufacturing techniques and rigorous quality control measures.
To achieve this level of precision, manufacturers employ state-of-the-art Computer Numerical Control (CNC) machining centers. These advanced machines can consistently produce parts with extremely tight tolerances. The CNC process is guided by Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software, which allows for precise control over every aspect of the manufacturing process.
In addition to CNC machining, other precision manufacturing techniques may be used, such as precision forging and cold forming. These processes can produce near-net-shape parts with minimal need for subsequent machining, helping to maintain dimensional accuracy while also improving the mechanical properties of the titanium alloy.
Throughout the manufacturing process, regular measurements and inspections are conducted using high-precision measuring instruments such as coordinate measuring machines (CMMs), laser micrometers, and optical comparators. These tools allow for the verification of critical dimensions at various stages of production, ensuring that any deviations from the specified tolerances are quickly identified and corrected.
Maintaining such tight dimensional tolerances is crucial for several reasons. Firstly, it ensures that the wheel studs fit perfectly with the wheel and hub assembly, preventing any play or movement that could lead to safety issues. Secondly, accurate dimensions are essential for proper load distribution and torque application, which are critical factors in the performance and safety of wheel studs. Lastly, consistent dimensional accuracy across all manufactured studs ensures interchangeability, which is important for both manufacturing efficiency and aftermarket replacement.
Surface finish
The surface finish of titanium wheel studs, particularly on the threads and contact surfaces, is a critical factor in their performance and longevity. A proper surface finish not only enhances the corrosion resistance of the studs but also reduces wear and ensures optimal load distribution.
For the threaded portion of the wheel stud, a fine surface finish is essential to reduce friction and ensure consistent torque application. The industry standard for thread surface finish is typically between 0.8 to 3.2 μm Ra (Roughness average). This level of finish is achieved through precision threading processes such as thread rolling, which produces a smoother and stronger thread profile compared to cut threads.
The contact surfaces of the wheel stud, such as the under-head area and the shank, also require careful attention to surface finish. These areas are typically finished to a roughness of 0.4 to 1.6 μm Ra. A smooth finish on these surfaces helps to distribute the clamping load evenly, reduce stress concentrations, and minimize the risk of fatigue failure.
To achieve and maintain these surface finishes, manufacturers may employ various techniques beyond the initial machining process. These can include:
1. Abrasive flow machining: A process where a semi-solid media carrying abrasive particles is forced through the part, polishing internal passages and hard-to-reach areas.
2. Superfinishing: A micro-finishing process that uses fine abrasive stones or tape to produce an extremely smooth surface.
3. Isotropic superfinishing: A chemical-mechanical process that produces a highly uniform surface finish with improved fatigue and wear resistance.
The appropriate surface finish not only improves the functional properties of the wheel stud but also enhances its corrosion resistance. A smoother surface provides fewer sites for corrosion initiation and makes it easier to apply and maintain protective coatings or lubricants.
Quality control
Ensuring the quality of titanium wheel studs is a critical process that involves 100% inspection to guarantee that each stud meets or exceeds the required quality standards. This comprehensive quality control process covers various aspects of the stud's performance and characteristics, including tensile strength, hardness, and proof load.
Tensile strength testing is performed to ensure that the wheel studs can withstand the high loads they will be subjected to during use. This test involves applying an increasing axial load to the stud until failure occurs. The tensile strength of titanium wheel studs typically ranges from 800 to 1200 MPa, depending on the specific alloy and heat treatment used.
Hardness testing is another crucial aspect of quality control. The hardness of the wheel stud affects its wear resistance and ability to maintain clamping force over time. Hardness is typically measured using the Rockwell C scale (HRC), with values for titanium wheel studs usually falling in the range of 28 to 34 HRC.
Proof load testing is conducted to verify that the wheel studs can withstand the maximum expected service loads without permanent deformation. In this test, the stud is subjected to a load that is higher than the maximum expected service load for a specified period. The stud must not show any signs of yielding or permanent deformation after the test.
In addition to these mechanical tests, quality control also involves dimensional inspections, surface finish evaluations, and visual inspections for any defects. Many manufacturers use automated inspection systems, such as optical scanning and computer vision technologies, to ensure consistent and objective quality assessments.
Industry standards
Adherence to automotive industry standards is crucial in the manufacturing of titanium wheel studs. These standards, such as those set by the Society of Automotive Engineers (SAE), provide comprehensive guidelines covering the mechanical and material requirements of wheel studs.
Some of the key SAE standards relevant to wheel studs include:
1. SAE J429: Mechanical and Material Requirements for Externally Threaded Fasteners
2. SAE J995: Mechanical and Material Requirements for Steel Nuts
3. SAE J2339: Performance Evaluation of Automotive Wheel Systems
These standards provide detailed specifications for various aspects of wheel stud design and performance, including: 1. Minimum tensile strength 2. Proof load requirements 3. Hardness ranges 4. Thread dimensions and tolerances 5. Material composition requirements 6. Testing procedures and acceptance criteria
By following these industry standards, manufacturers ensure that their titanium wheel studs meet the rigorous requirements of the automotive industry, providing consistent performance and reliability across different vehicle applications.
Titanium wheel studs for sale

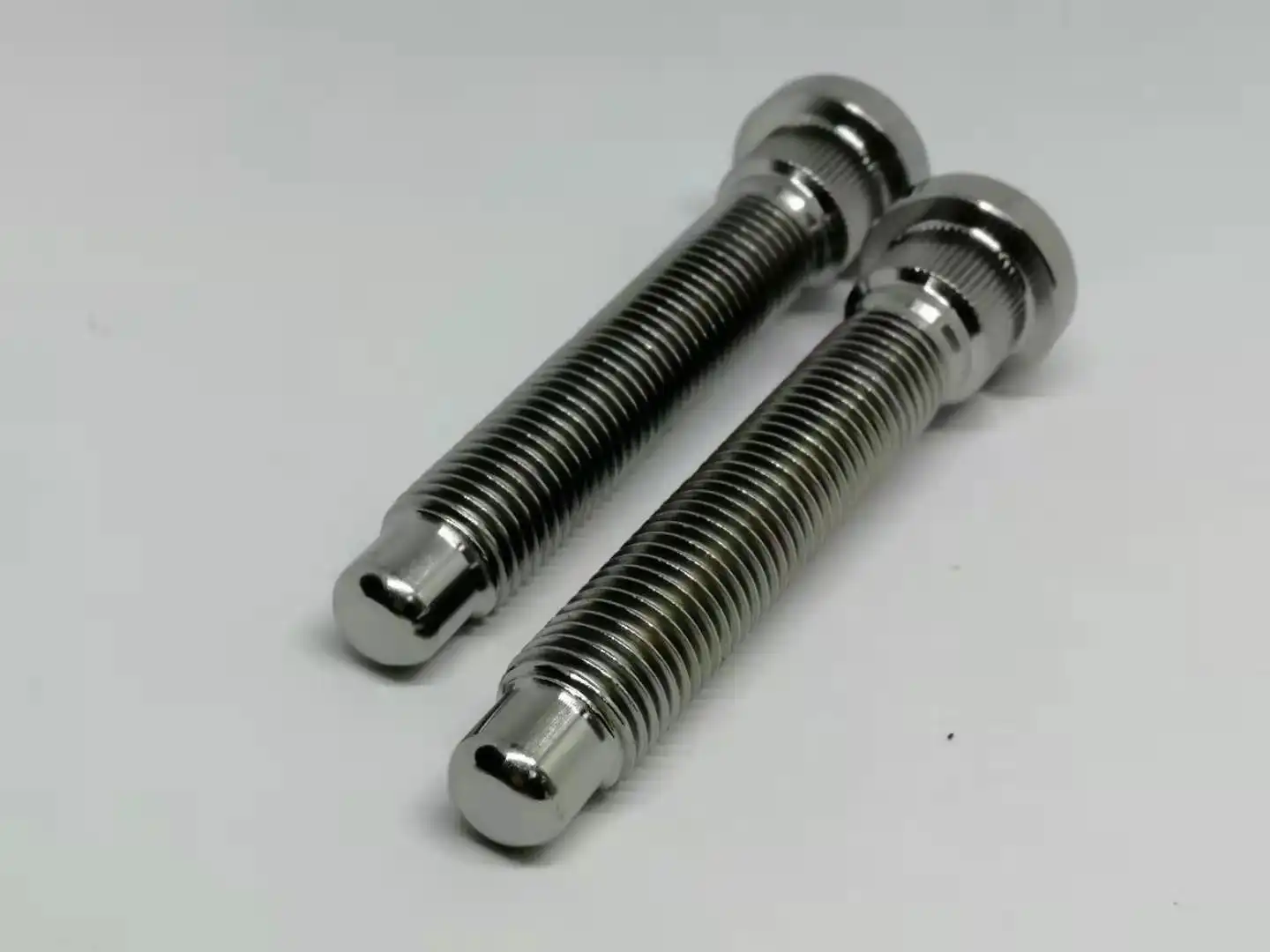

For those in the market for high-quality titanium wheel studs, Wisdom Titanium company offers a range of options with various finishes to suit different preferences and applications. Their product line includes titanium wheel studs with finishes such as polished, anodized, or custom options to meet specific customer requirements.
The polished finish provides a sleek, mirror-like appearance that not only enhances the visual appeal but also improves corrosion resistance. Anodized finishes offer additional corrosion protection and can be color-coded for easy identification or to match vehicle aesthetics. For customers with unique requirements, Wisdom Titanium also offers custom finishing options to tailor the wheel studs to specific needs.
When selecting titanium wheel studs, it's crucial to consider not only the thread size and length but also the finish that best suits your application. If you're considering upgrading to titanium wheel studs or need assistance in selecting the right product with the appropriate finish, Wisdom Titanium invites potential customers to reach out to them at sales@wisdomtitanium.com. Their team can provide expert guidance on choosing the appropriate titanium wheel studs with the ideal finish for your vehicle and application.
References
1. ASM International. ASM Handbook, Volume 5: Surface Engineering. ASM International.
2. Totten, G. E. (Ed.). Surface Modification and Mechanisms: Friction, Stress, and Reaction Engineering. CRC Press.
3. Stephens, R. I., Fatemi, A., Stephens, R. R., & Fuchs, H. O. Metal Fatigue in Engineering. John Wiley & Sons.
4. DeGarmo, E. P., Black, J. T., & Kohser, R. A. Materials and Processes in Manufacturing (11th ed.). John Wiley & Sons.
5. SAE International. Mechanical and Material Requirements for Externally Threaded Fasteners. SAE International.
6. SAE International. Performance Evaluation of Automotive Wheel Systems. SAE International.
