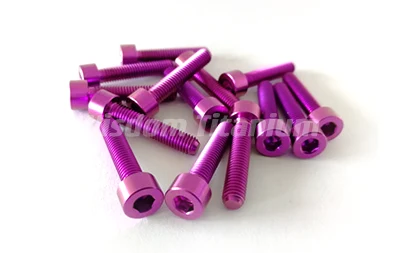

When it comes to cycling, every component plays a crucial role in ensuring a safe and enjoyable ride. One often overlooked yet critical element is the titanium stem bolt. These small but mighty fasteners are responsible for securing your handlebars to the stem, making them essential for steering control and overall bike stability. But how tight should these bolts be? Let's dive into the world of titanium stem bolts and uncover the secrets to proper tightening.
Torque Specifications for Titanium Stem Bolts
Titanium stem bolts require precise tightening to function optimally. Unlike their steel counterparts, titanium bolts have unique properties that demand careful attention to torque specifications. Generally, the recommended torque range for titanium stem bolts falls between 4-6 Newton meters (Nm). However, it's crucial to note that this range can vary depending on the specific manufacturer and model of your stem.
Here's a breakdown of typical torque specifications for different stem types:
- Standard road bike stems: 4-5 Nm
- Mountain bike stems: 5-6 Nm
- Lightweight carbon fiber stems: 4-5 Nm
- Oversized stems (35mm clamp diameter): 5-6 Nm
It's important to remember that these are general guidelines. Always consult your stem manufacturer's specific recommendations, as they may differ based on the stem's design and material composition. Some manufacturers may even provide a torque range printed directly on the stem for easy reference.
Why Is Proper Tightening Crucial for Safety and Performance?
The importance of correctly tightening your titanium stem bolts cannot be overstated. Both under-tightening and over-tightening can lead to serious issues that compromise your safety and your bike's performance.
Risks of Under-Tightening
When titanium stem bolts are not tightened sufficiently, several problems can arise:
- Loose handlebars: Inadequate tightening can cause your handlebars to slip or rotate unexpectedly, leading to loss of control while riding.
- Increased wear: Loose bolts allow for micro-movements between components, accelerating wear and potentially causing damage to your stem or handlebars.
- Creaking noises: A telltale sign of under-tightened bolts is an annoying creaking sound that occurs during rides, especially when applying pressure to the handlebars.
Dangers of Over-Tightening
On the flip side, over-tightening titanium stem bolts can be equally problematic:
- Bolt failure: Excessive torque can cause the bolt to stretch beyond its yield point, leading to fatigue and eventual failure.
- Thread stripping: Over-tightening can strip the threads on either the bolt or the stem, rendering them unusable and potentially requiring expensive replacements.
- Component damage: Applying too much force can crush or deform carbon fiber handlebars or stems, compromising their structural integrity.
Proper tightening ensures that your stem bolts provide the optimal balance between security and component longevity. When tightened correctly, titanium stem bolts offer superior strength-to-weight ratio, corrosion resistance, and durability compared to traditional steel bolts.
Techniques for Accurately Tightening Titanium Stem Bolts
Achieving the perfect tightness for your titanium stem bolts requires more than just guesswork. Here are some techniques and tools to help you nail the correct torque every time:
1. Use a Torque Wrench
A torque wrench is an indispensable tool for any serious cyclist. This precision instrument allows you to apply a specific amount of torque to your bolts, ensuring consistent and accurate tightening. When using a torque wrench:
- Set the wrench to the manufacturer's recommended torque value
- Apply steady pressure until you hear or feel the wrench "click," indicating the desired torque has been reached
- Avoid applying additional force after the click, as this can lead to over-tightening
2. Employ the "Two-Finger Rule"
For those without access to a torque wrench, the "two-finger rule" can serve as a rough guideline. This technique involves:
- Gripping the short end of your Allen key with your thumb and index finger
- Tightening the bolt until you feel significant resistance
- Applying a final quarter-turn using only the pressure from your two fingers
While not as precise as a torque wrench, this method can help prevent over-tightening in a pinch.
3. Gradual Tightening Sequence
When dealing with multiple bolts, such as those on a four-bolt stem faceplate, it's crucial to tighten them in a specific sequence:
- Begin by finger-tightening all bolts
- Using a torque wrench or Allen key, tighten each bolt to about 50% of the final torque in a cross pattern
- Repeat the process, tightening to 75% of the final torque
- Finally, tighten each bolt to the full recommended torque value
This gradual approach ensures even pressure distribution and prevents warping or misalignment of components.
4. Regular Checks and Maintenance
Even properly tightened titanium stem bolts can loosen over time due to vibrations and temperature changes. Implement a regular maintenance routine that includes:
- Checking bolt tightness before each ride
- Performing a thorough inspection and re-torquing of all bolts monthly
- Cleaning and lightly lubricating bolt threads to prevent seizing
By following these techniques and maintaining a consistent maintenance schedule, you'll ensure that your titanium stem bolts remain at the optimal tightness for peak performance and safety.
5. Consider Using a Torque Paste
Torque paste, also known as assembly compound or friction paste, can be a valuable ally when working with titanium stem bolts. This gritty substance increases friction between components, allowing for lower torque values while maintaining a secure connection. When using torque paste:
- Apply a thin, even layer to the contact surfaces between the stem and handlebars
- Reduce the recommended torque value by about 20-30%
- Tighten the bolts as usual, using a torque wrench for precision
Torque paste is particularly useful when working with carbon fiber components, as it helps prevent slippage without the need for excessive clamping force.
6. Understanding Material Interactions
Titanium stem bolts often interact with components made from different materials, such as aluminum stems or carbon fiber handlebars. It's essential to understand how these materials behave together:
- Titanium and aluminum: Use an anti-seize compound to prevent galvanic corrosion
- Titanium and carbon fiber: Avoid over-tightening, as carbon fiber can be easily damaged by excessive clamping force
- Titanium and titanium: Apply a light lubricant to prevent galling (cold welding) between the threads
By considering these material interactions, you can further optimize the performance and longevity of your titanium stem bolts.
Contact Information
Properly tightening titanium stem bolts is a crucial skill for any cyclist looking to maximize safety, performance, and component longevity. By following the recommended torque specifications, employing accurate tightening techniques, and understanding the unique properties of titanium, you can ensure that your bike's cockpit remains secure and responsive ride after ride.
Remember, when in doubt, always consult your component manufacturer's guidelines or seek advice from a professional bike mechanic. With the right knowledge and tools, you'll be able to confidently maintain your bike's titanium stem bolts, allowing you to focus on what really matters – enjoying the ride.
